Soldering Pallets
- Adaptable to different dimensions of PCB or SMD.
- Set the number of rows as needed.

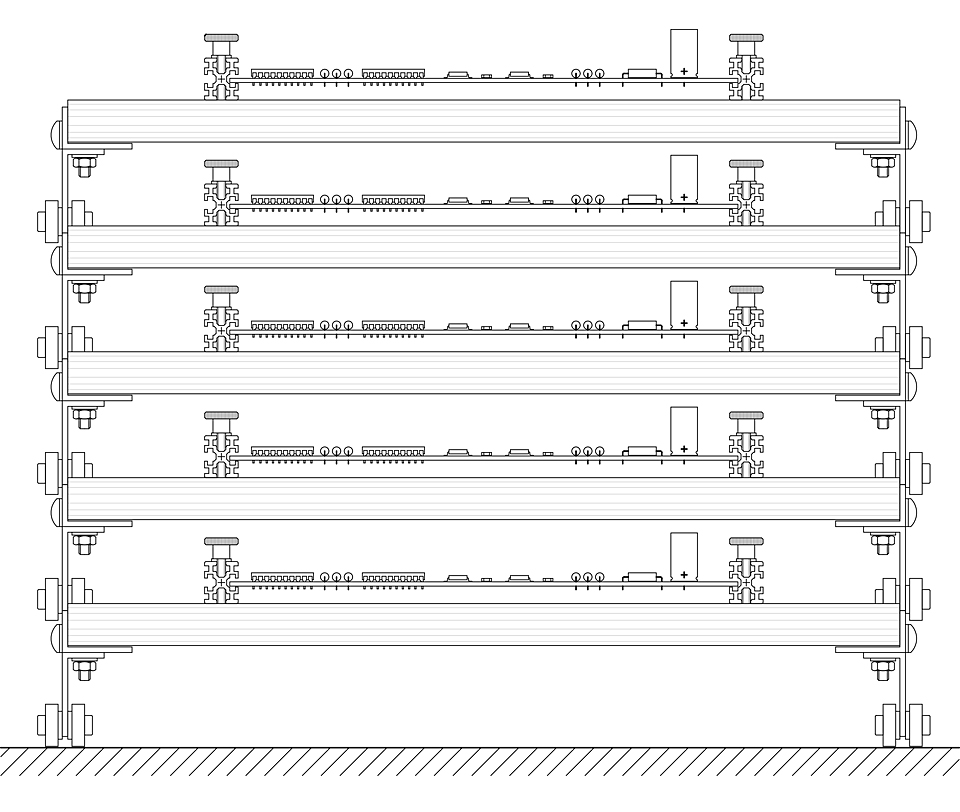

- Soldering Pallets can be stacked on top of each other.
- Easy to handle.
- Ideal for small to medium volume production.

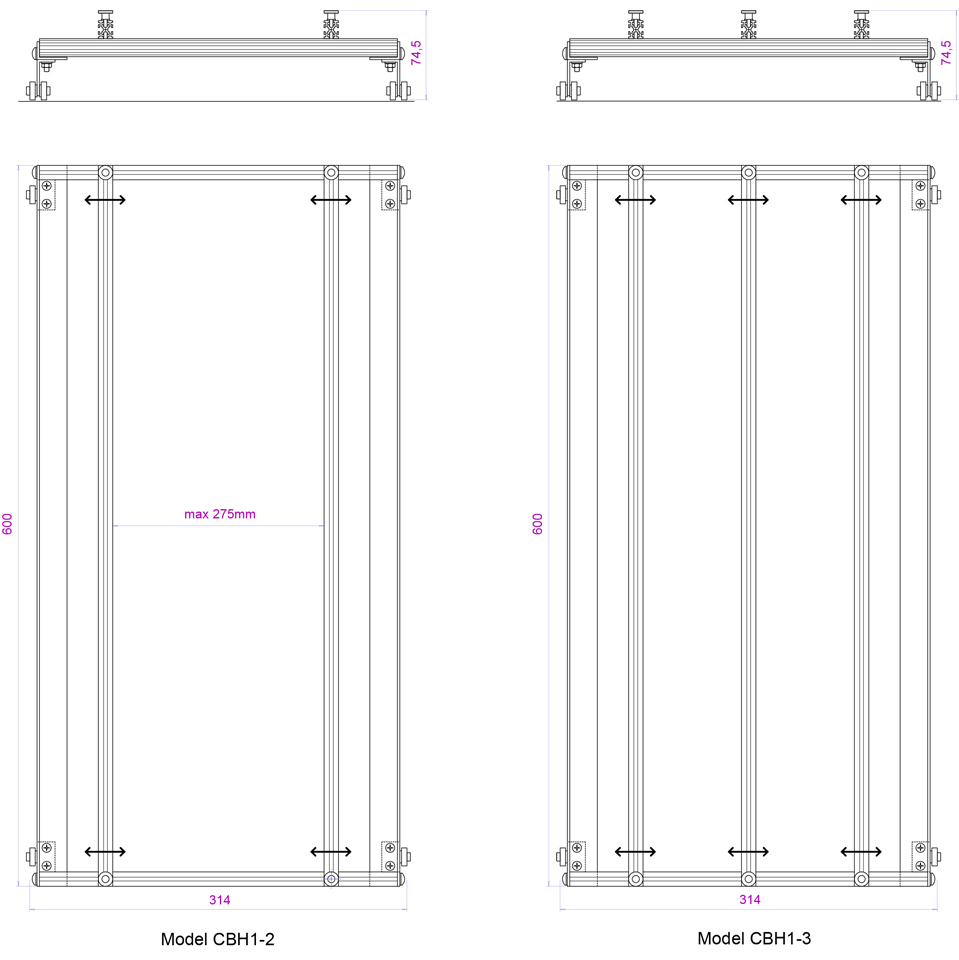

| Standard Models: | |
|---|---|
| CBH1-2: | with 2 adjustable PCB holders |
| CBH1-3: | with 3 adjustable PCB holders |
| Other models and dimensions: | available on request |
| Specification: | |
|---|---|
| External dimensions: | 314x600x74.5mm |
| Max dim. of PCB: | 275x600mm |
| Basic construction: | aluminum profiles |
| Weight: | 450 g |
